Crawler crane radiator
Crawler crane radiator

Crawler crane radiator

Applicable Vehicle Types:

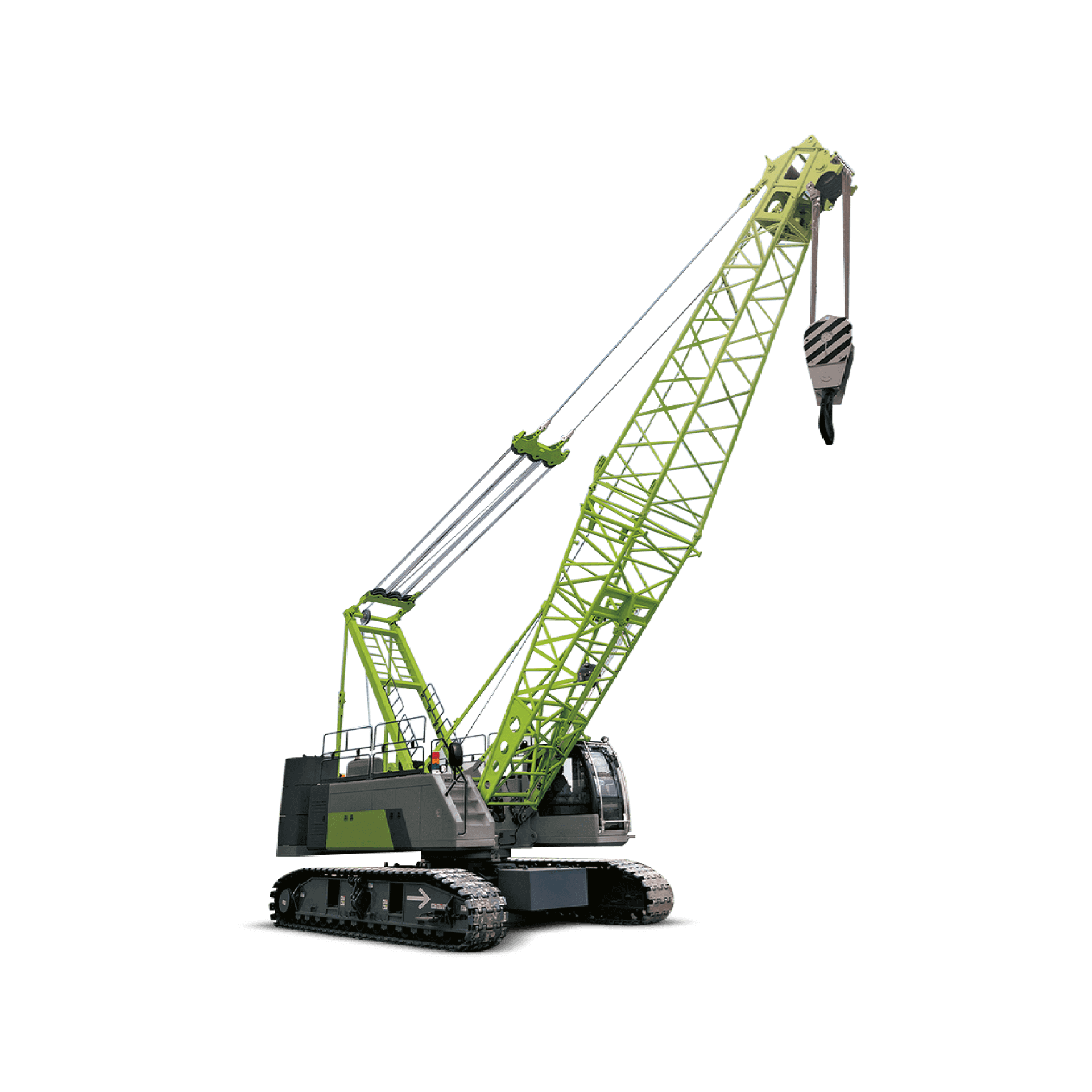

Crawler crane

Fan:

Electronic fan or hydraulic fan

Core Size:

1800x1200x160

function

Under the forced air cooling of the fan attached to the engine, the high temperature air after supercharging, the high temperature and high pressure oil after the operation of the oil circuit system, and the high temperature cooling water of the waterway system cooling the engine are cooled to the appropriate temperature; The bypass valve assembly is added to the oil circuit system, which greatly reduces the peak pressure and effectively improves the life of the oil circuit system parts.

Parameters

Applicable models

Fan

Bypass-valve

Core size

Crawler crane

Electronic fan or hydraulic fan

Bypass pressure adjustable

1800x1200x160

(max)

Can be customized or customized according to customer requirement.

Key components

资源 3.png

1. Shroud module

2. Radiator

3. Bar-plate charge oil cooler

4. Welded frame components

5. Bypass valve assembly

6. High pressure oil pipe

7. Bar-plate charge air cooler

8. Stainless steel dust screen

9. Rubber pad assembly


Key components

资源 5.png

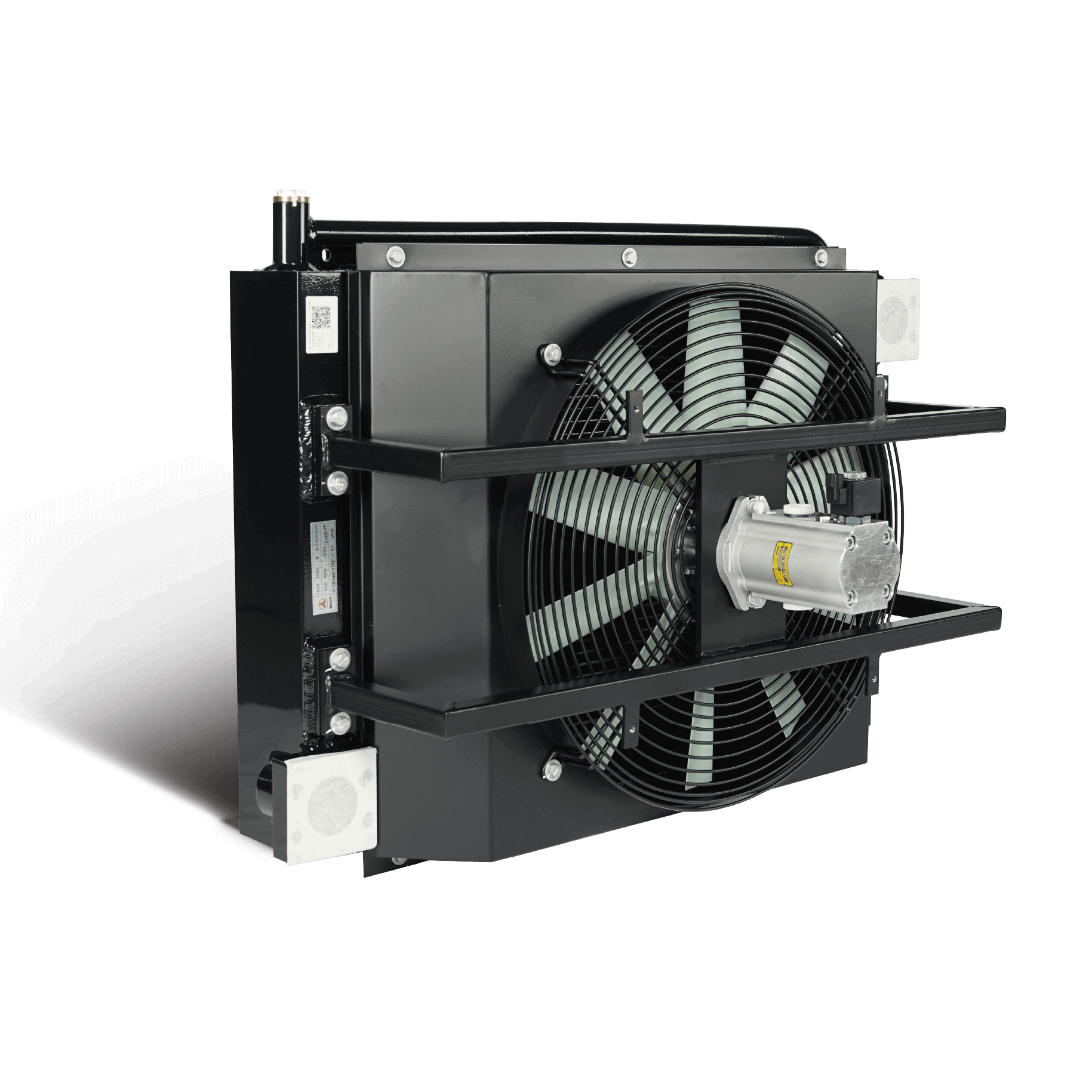

1. Hydraulic motor

2. Fan

3. Bar-plate oil cooler

4. Bypass valve assembly

5. Finger guard

6. Shroud module
