Truck mixer Radiator series
Truck mixer Radiator series

Truck mixer Radiator series

Applicable Vehicle Types:

Truck mixer

Fan:

Fan specifications are optional

Core Size:

1800x1200x160

function

Under the control of the temperature control switch, the electronic fan produces cooling air to cool the high temperature oil which caused by oil system runs to a proper temperature; meanwhile, the hydraulic oil can be filtered through the filter and then enter the oil circuit system under the action of the negative pressure pump;

Parameters

Applicable Machine

Fan

Open and Close temperature

Capacity of oil system

Core size

Truck mixer of 3m³~6m³

Fan specifications are optional

Customizable

12L or Customizable

1800x1200x160

(max)

Truck mixer of 7m³~12m³

18L or Customizable

Truck mixer of 13m³~16m³

26L or Customizable

Truck mixer of over 16m³

32L or Customizable

Can be customized or customized according to customer requirement.

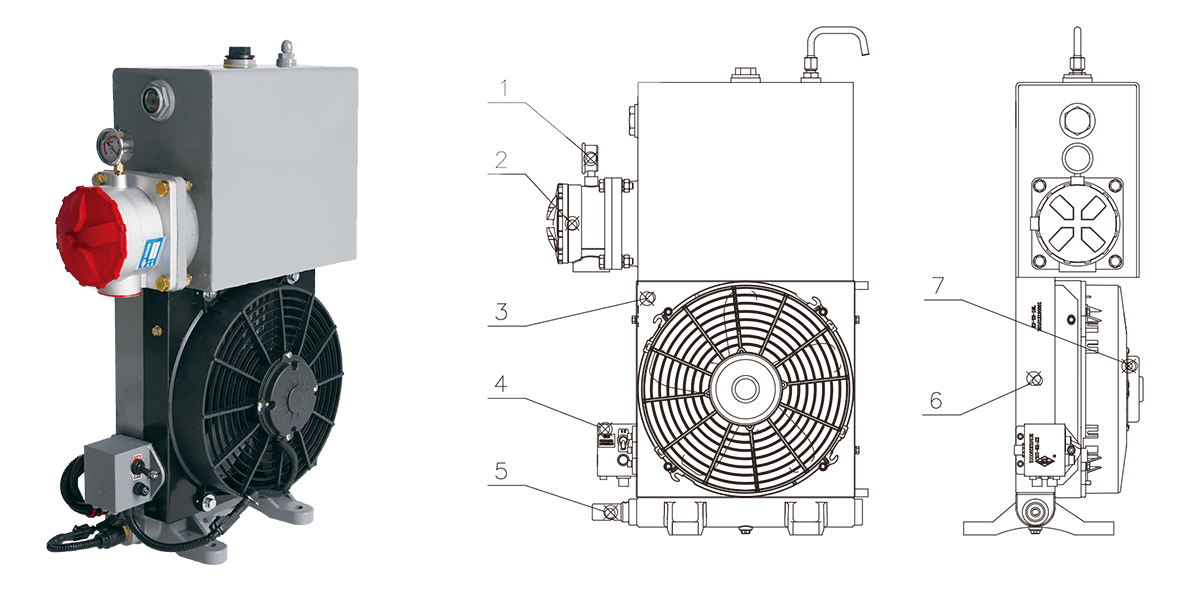

KEY COMPONENTS


1. Vacuum pressure gauge

2. Filter

3. Shroud module

4. Junction box

5. Temperature control switch

6. Bar-plate oil cooler

7. Electronic fan
